Expert Panic Room Builders in Sydney
A professionally designed panic room gives your household a secure place to retreat during an emergency or security incident. Substructure Solutions designs and constructs discreet panic rooms for properties in Sydney, from reinforced existing rooms to purpose-built underground spaces.
✓ Licensed NSW Builder ✓ Fully Insured ✓ Free Site Assessment ✓ Sydney-Wide
Get an instant quote!
What Is a Panic Room?
A panic room is a reinforced room designed to provide a protected space within or beneath a property. It may be incorporated into an existing room, included within a basement addition, or constructed as a dedicated underground chamber.
The design can also incorporate ventilation, communications, backup power, surveillance, and emergency supplies, depending on the intended use.
Panic Room or Safe Room: What's the Difference?
There is no structural difference between a safe room and a panic room. The terms are generally used to describe the same concept: a protected room where occupants can retreat during an emergency.
What matters is how the room is designed, what risks it is intended to address and how long occupants may need to remain inside.
Why Sydney Homeowners Build Panic Rooms
Unlawful Entry
A secure room gives occupants a place to retreat while contacting emergency services, rather than remaining exposed elsewhere in the home.
Protection of Valuable Contents
Some panic rooms also include secure storage for documents, valuables, and other important possessions.
Bushfire and Extreme Weather
A purpose-built room may form part of broader emergency planning. (It should not be assumed to provide bushfire, flood, or storm protection unless it has been specifically designed for those hazards.)
Personal Duress Risk
People whose occupation, business activities, or public profile pose additional security concerns may use a secure room as an additional layer within a broader security strategy.
Where Can a Panic Room Be Built?
The best location depends on the existing structure, available space, ground conditions and accessibility.
Existing basements can provide an ideal location for a safe room, particularly where structural work, waterproofing and services are already being upgraded. A secure room can also be incorporated during a new basement addition.
Where no suitable room exists, Substructure Solutions can assess whether an underground panic room can be excavated beneath or beside the home. These projects may involve temporary support, waterproofing, excavation and underpinning. Where existing foundations are already moving, separate repairs to sinking piers may also be required.
See our other underground spaces and bunker underground construction services for related options.

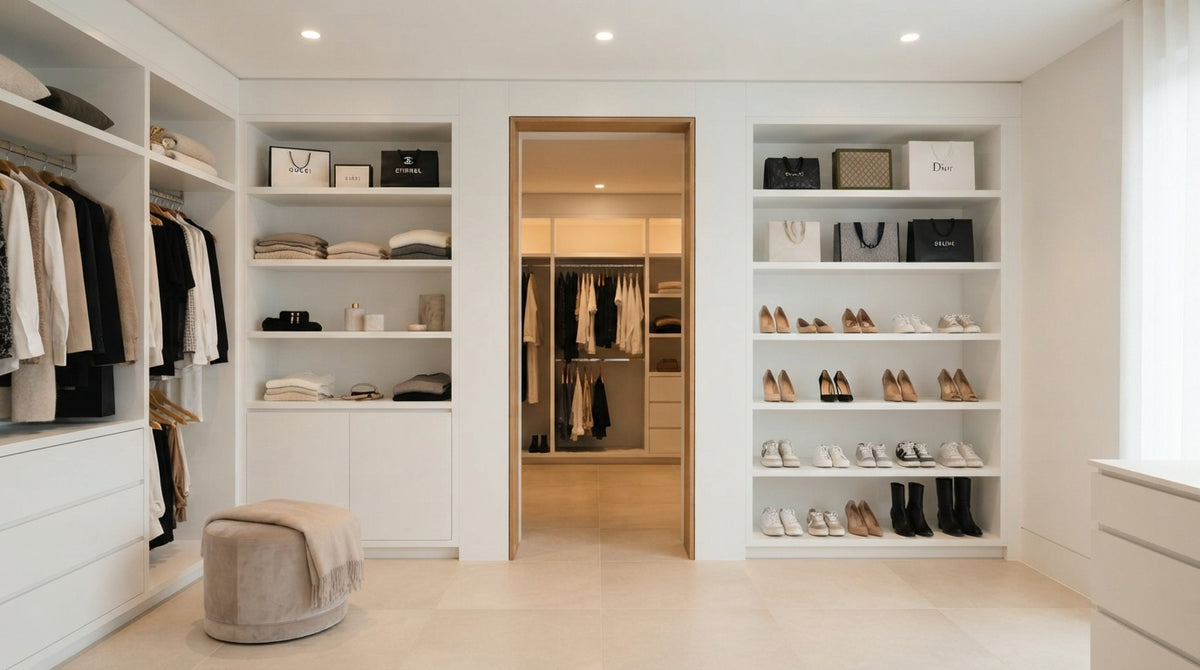

An existing room or large wardrobe may sometimes be converted into a hardened space, eliminating the need for excavation. The walls, ceiling, floor, doorway and surrounding structure still need to be properly assessed. Installing a stronger door alone does not create a properly designed in-house panic room.
Panic Room Construction Methods
Every safe room should be engineered around the property and its intended level of protection.
-
1
Reinforced Concrete
Concrete can form strong walls, floors and ceilings, especially in basement and underground construction. Reinforcement requirements depend on the structural design and ground conditions.
-
2
Steel and Specialised Wall Systems
Existing rooms may also be strengthened using steel or engineered wall systems. Where ballistic or impact resistance is required, materials should be selected in accordance with applicable performance standards.
-
3
Doors and Locking Systems
The door, frame, hinges, fixings and locking system need to work together. A heavily reinforced wall provides little benefit if the opening remains vulnerable.
For more ideas, see our guide to panic room designs.
What Goes Inside a Panic Room?
The fit-out depends on the number of occupants and intended shelter duration.
- Ventilation: Enclosed rooms require adequate ventilation. Mechanical systems may need to meet relevant National Construction Code requirements and AS 1668.2.
- Communications: Options include a hardwired connection, a mobile repeater, an in-building antenna, and a monitored duress alarm.
- Backup power: Essential systems can be supported by battery backup or an independent electrical supply.
- Surveillance: External cameras connected to an internal monitor allow occupants to check the property without opening the door.
- Water and supplies: Stored water, food and emergency items should reflect the number of occupants and intended shelter duration.
- Sanitation and comfort: Longer stays may require seating, sanitation, storage, lighting and temperature control.
Panic Room Sizes and Layouts
There is no universal size for an in-house panic room project. A short-duration room for two occupants requires far less space than an underground panic room designed for a larger family.
| Occupancy | Shelter Duration | Typical Placement |
|---|---|---|
| 2 people | Short duration | Wardrobe or ground-floor conversion |
| 4 people | Short to medium duration | Existing basement |
| 6 people | Medium to extended duration | Basement or excavated chamber |
| 8+ people | Extended duration | Purpose-built underground chamber |
Final dimensions, ceiling height, ventilation and access requirements should be established during design and engineering.
How Much Does a Panic Room Cost in Sydney?
Costs vary substantially because projects can range from reinforcing an existing room to excavating an entirely new underground structure.
Major cost factors include:
- Existing versus new construction
- Excavation requirements
- Ground or rock conditions
- Underpinning and structural support
- Waterproofing and drainage
- Structural engineering
- Door and wall specifications
- Ventilation, electrical and communications
- Access and spoil removal
- Interior fit-out
For underground panic room projects, many of the same site conditions encountered by a basement car park builder can affect construction costs.
A site assessment is the best way to determine feasibility and prepare an accurate quote.
Council Approval and Building Rules in NSW
Approval requirements depend on the type of work being performed and its impact on the existing building.
Some alterations may qualify for complying development, while larger structural or underground projects may require another approval pathway. The NSW Planning Portal provides information on exempt development and development applications.
Substructure Solutions can assess these requirements during the planning stage before excavation or construction begins.
How Substructure Solutions Builds a Panic Room
Our process generally follows seven stages:
- Site assessment and geotechnical investigation
- Concept design and engineering
- Approvals
- Temporary support and underpinning
- Excavation and shell construction
- Waterproofing and services
- Fit-out, commissioning and handover
We customise our approach depending on the property's structure, ground conditions and complexity of the design.
Build a Panic Room for Your Property with Substructure Solutions
A secure safe room or panic room requires appropriate structural design, reliable services and a construction method suited to the existing home and surrounding ground.
Substructure Solutions brings experience in underpinning, excavation and underground construction to complex residential projects throughout Sydney.
Contact us today for a free site assessment and discuss what may be possible within or beneath your property.
