Waterproofing Challenges in Underground Builds

Building an underground room in Sydney can give you extra space without expanding your footprint, but it comes with one critical challenge that can make or break your project: waterproofing. The waterproofing challenges in underground builds are real, but they're entirely manageable with the right approach and experienced builders.

Here's what you're up against and why proper waterproofing makes all the difference.

Key Insights

The main waterproofing challenges for Sydney underground builds:

• Sydney's high and variable groundwater levels (often just 2-3 metres below ground in coastal areas)
• Hydrostatic pressure pushing water through concrete
• Structural movement creating cracks over time
• Poor drainage around the structure
• Getting it right during construction – repairs afterwards are expensive and disruptive

Sydney's Groundwater Situation

Sydney isn't uniform when it comes to groundwater. If you're in the Botany Basin or Bayside area, you might hit groundwater at less than two metres below ground. Head west to Parramatta or Camden, and the water table sits around 3.5 to 6 metres down. This matters because the waterproofing challenges in underground builds change dramatically based on how close you are to the water table.

The closer your basement or bunker sits to groundwater, the more hydrostatic pressure your walls will face. Think of it like building at the bottom of a swimming pool, water constantly pushes against every surface, looking for the tiniest crack to seep through.

The Main Waterproofing Challenges in Underground Builds

Hydrostatic Pressure

Water doesn't just sit there politely. Underground, it's under pressure and actively trying to force its way into your space through any weak point in the concrete. Even a hairline crack becomes a serious problem when there's constant water pressure behind it. This is the biggest waterproofing challenge most Sydney underground projects face.

Structural Movement

Your underground room will shift slightly over time as the soil settles and the building responds to temperature changes. These tiny movements can create cracks in waterproofing membranes or concrete if the system isn't flexible enough to move with the structure. What starts as perfect waterproofing can fail within a few years without the right materials.

Construction Joints and Penetrations

Every point where concrete sections meet, where pipes enter the structure, or where walls join floors creates a potential weak spot. These joints need special attention during waterproofing, it's not enough to just treat the flat surfaces. Many waterproofing failures happen at these junction points because they were rushed or poorly detailed.

Poor Surface Drainage

Water pooling around your underground structure adds unnecessary pressure to your waterproofing system. If surface water isn't directed away from the building properly, you're making the waterproofing work harder than it needs to. Good drainage starts at ground level.

Why This Matters for Your Project

Getting waterproofing right is fundamental. Water infiltration can corrode the structure and damage materials housed within the building. More practically, a leaking underground room becomes unusable space. You can't store anything valuable there, you certainly can't use it as living space, and fixing waterproofing failures after construction means jackhammering, excavation, and massive expense.

The good news? When waterproofing is done properly from the start, yourunderground room cost includes long-term protection. You won't be dealing with dampness, mould, or structural deterioration down the track.

Professional Solutions That Work

Modern waterproofing for underground builds uses multiple layers of protection. Quality builders combine waterproof concrete admixtures, flexible membrane systems, and proper drainage to create redundancy – if one system has a minor issue, the others keep doing their job.

For Sydney conditions specifically, this usually means:

• Pre-applied waterproofing membranes that bond directly to the concrete as it cures
• Crystalline waterproofing additives mixed into the concrete itself
• Proper dewatering during construction (and yes, you'll need licensing from WaterNSW for this)
• Comprehensive drainage systems around the structure
• Careful detailing at every joint and penetration

Thecost to dig a basement includes all these waterproofing elements, but cutting corners here is a false economy. Waterproofing repairs can cost more than doing it properly the first time.

Working with Waterproofing Specialists

The waterproofing challenges in underground builds require expertise that goes beyond general construction. You need builders who understand Sydney's groundwater conditions, who've dealt with sites from Botany to the Hills District, and who know which waterproofing systems work for different soil types and depths.

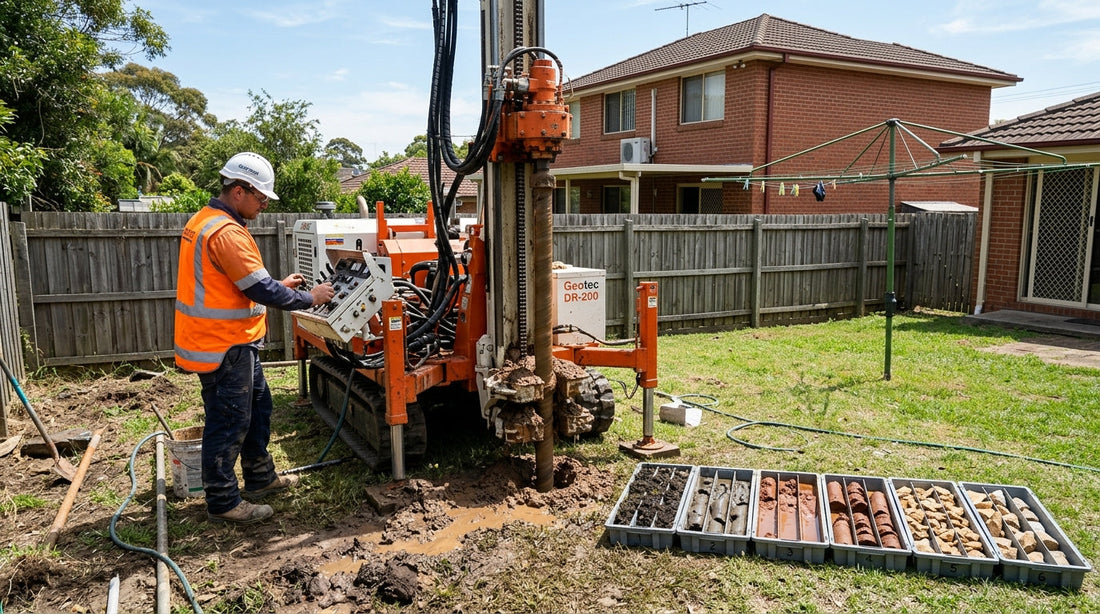

At Substructure Solutions, we specialise in underground construction across Sydney. We handle everything from initial geotechnical testing to final waterproofing installation, managing dewatering permits and coordinating with multiple trades to ensure your underground room stays dry for decades. Our team has builtmodern underground spaces across Sydney that deliver on thebenefits of underground rooms (extra space, security, and privacy) without the headaches of water ingress.

Want to add an underground room to your property without waterproofing worries? We'll assess your site's specific challenges and design a waterproofing system that works for your conditions. Get in touch with Substructure Solutions to discuss your project today.
